Integrated Circuit Chip SPC584C70E5QM00X Microcontroller IC TQFP-144 Package

ntegrated Circuit Chip SPC584C70E5QM00X Microcontroller IC TQFP-144 Package

Product Description Of SPC584C70E5QM00X

SPC584C70E5QM00X all main cores are equipped with 8 KB of instruction cache. So in order to speed-up program execution it’s possible to use it since the early stage of the boot process. I-Cache must be invalidated firstly and then enabled.

Product Attributes Of SPC584C70E5QM00X

Features Of SPC584C70E5QM00X

• 176 KB HSM dedicated flash memory (144 KB code + 32 KB data)

• 384 KB on-chip general-purpose SRAM (+ 128 KB local data RAM: 64 KB included in each CPU)

• Multi channel direct memory access controllers

• 64 eDMA channels

• One interrupt controller (INTC)

• Dual phase-locked loops with stable clock domain for peripherals and FM modulation domain for computational shell

• Crossbar switch architecture for concurrent access to peripherals, Flash, or RAM from multiple bus masters with end-to-end ECC

• Hardware security module (HSM) with HW cryptographic co-processor

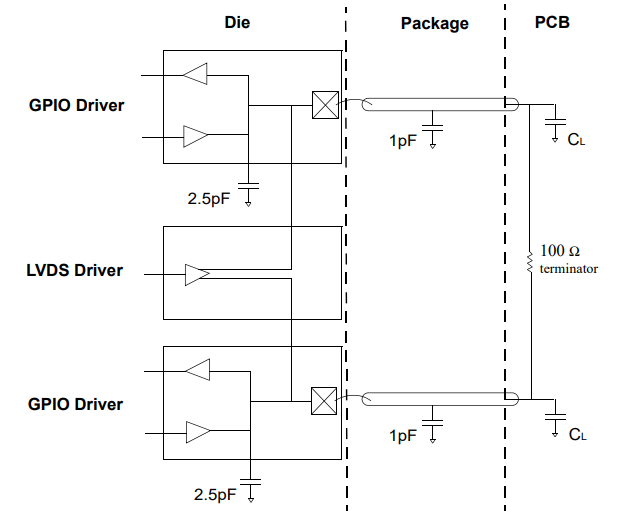

LVDS Pad External Load Diagram Of SPC584C70E5QM00X

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.

Integrated Circuit Chip SPC584C70E5QM00X Microcontroller IC TQFP-144 Package Images
