Two Channel ADS131B02QPWRQ1 24BIT Analog To Digital Converters 20TSSOP Delta Sigma
Product Description Of ADS131B02QPWRQ1
ADS131B02QPWRQ1 is a two-channel, simultaneous-sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that offers wide dynamic range, low power, and buffered analog inputs, making the device an excellent fit for automotive battery management systems (BMS). The ADC inputs can be directly interfaced to shunt resistors for bidirectional battery-current measurements, to resistor-divider networks for high-voltage measurements, or to temperature sensors (such as thermistors or analog output temperature sensors).
Specification Of ADS131B02QPWRQ1
| Part Number | ADS131B02QPWRQ1 |
| Number of Bits | |
| Sampling Rate (Per Second) | |
| Number of Inputs | |
| Input Type | |
| Data Interface | |
| Configuration | |
| Ratio - S/H:ADC | |
| Number of A/D Converters | |
| Architecture | |
| Reference Type | |
| Voltage - Supply, Analog | |
| Voltage - Supply, Digital | |
| Features | |
| Operating Temperature | |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | |
| Mounting Type | |
Features Of ADS131B02QPWRQ1
- 2 simultaneous-sampling, differential input ADCs
- Programmable data rate: Up to 32 kSPS
- Programmable gain: Up to 128
- Noise performance: 0.82 μVRMS at 1 kSPS, gain = 8
- Global-chop mode to remove offset drift over temperature and time
- High-impedance analog inputs for direct sensor connection
- Integrated negative charge pump allows input signal measurements below ground
- Crosstalk between channels: –120 dB
- Low-drift internal reference: 1.2 V
- Precision internal oscillator
- CRC on communications and register map
- Analog and digital supplies: 2.7 V to 3.6 V
- Low power consumption: 3 mW at 3.3-V AVDD and DVDD
Applications Of ADS131B02QPWRQ1
- EV charging stations
- DC e-metering
- Energy storage systems (ESS)

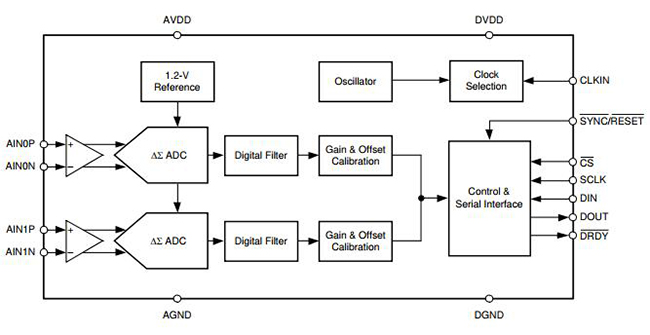

Simplified Block Diagram Of ADS131B02QPWRQ1
